6" Early Entry Green Concrete Saw with 3.5 HP Honda GX120 Engine

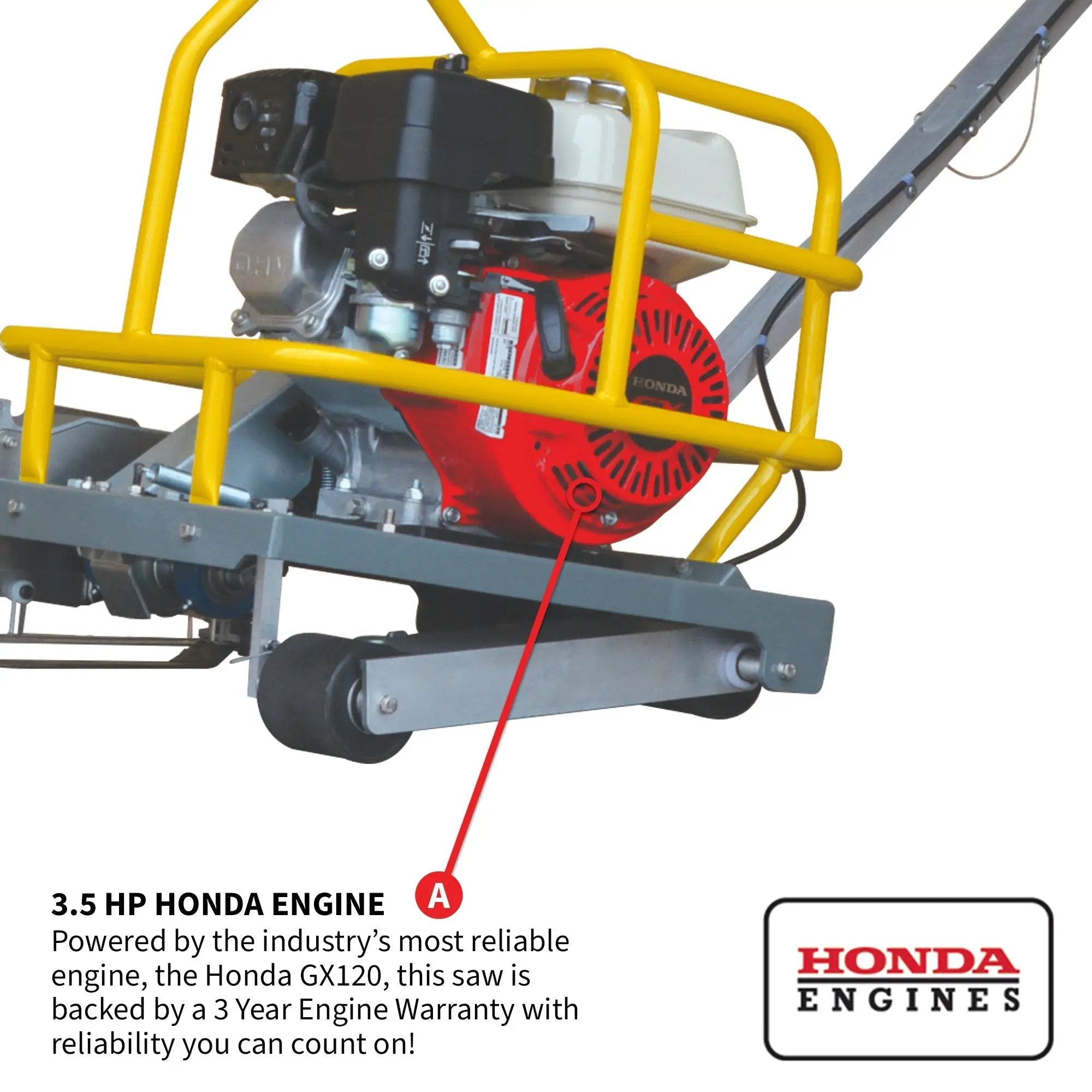

3.5 HP HONDA GX120 ENGINE

Powered by the industry’s most reliable engine, the Honda GX120, this saw starts on the first pull and will keep your jobsite running smoothly day after day!

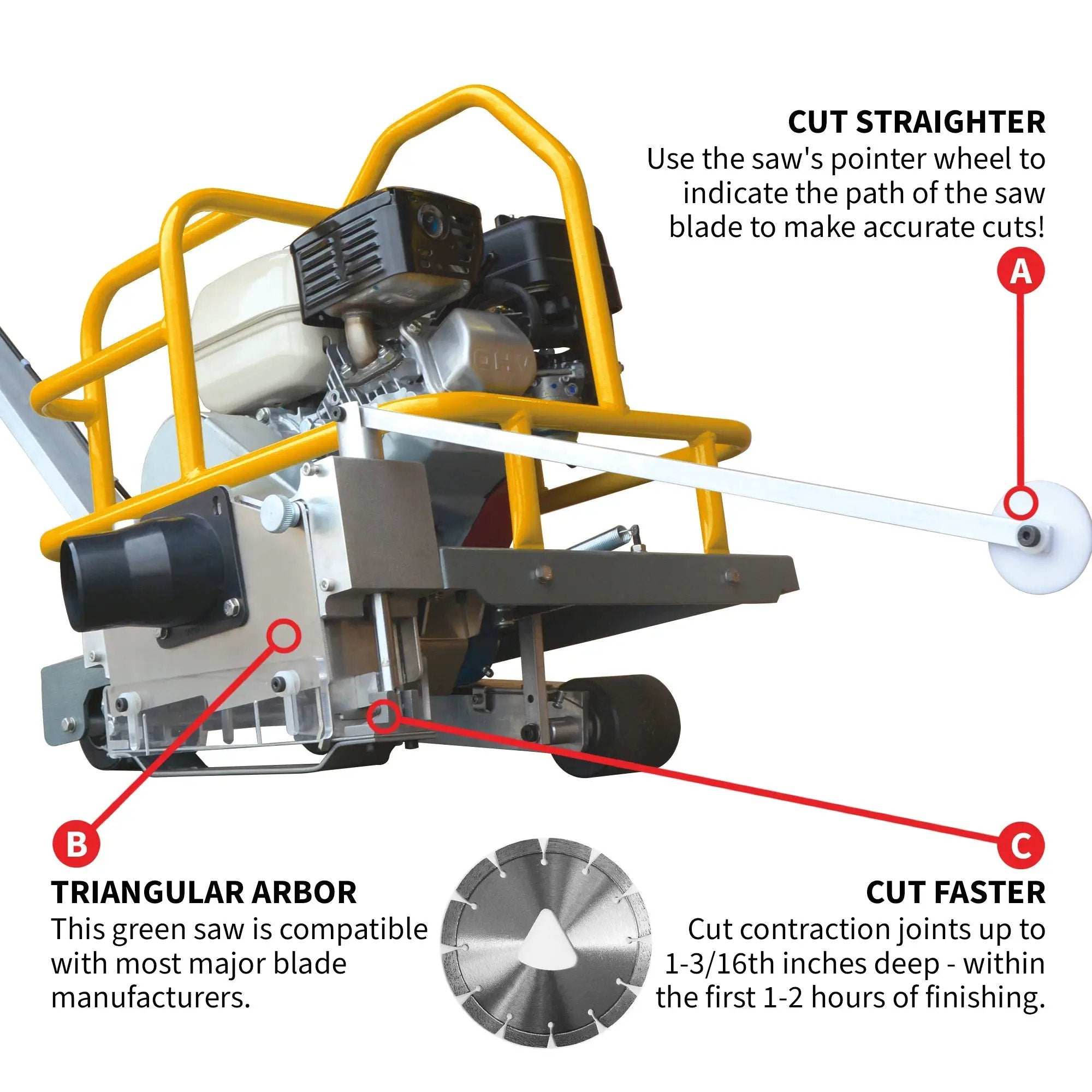

CUT FASTER

Cut contraction joints up to 1-3/16th inches deep - within the first 1-2 hours of finishing, to control stress cracking for the ultimate concrete results!

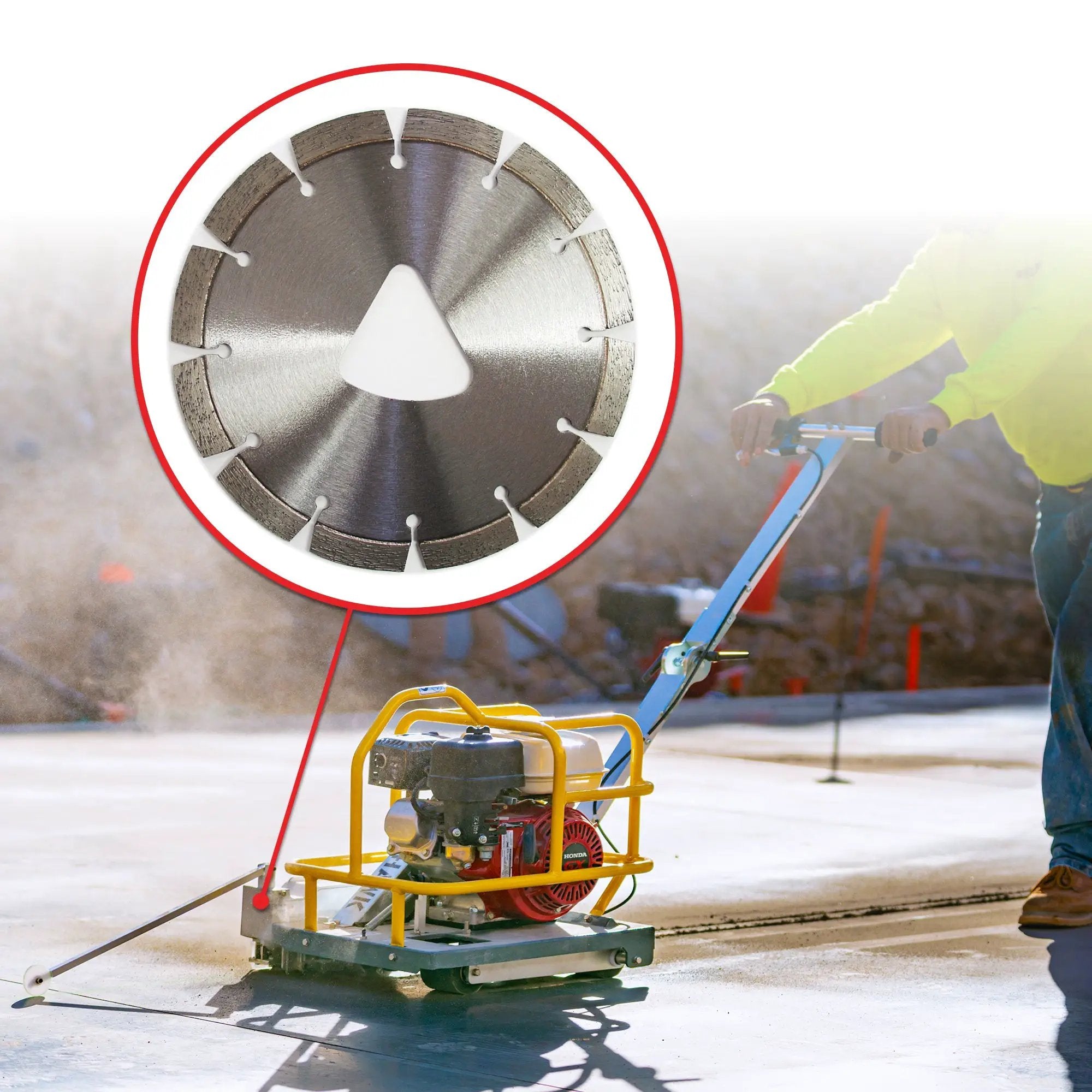

TRIANGULAR ARBOR

With the saw’s upcut blade rotation, maintain clean cuts, while keeping debris out! And with its triangular arbor, this saw is compatible with most major blade manufacturers.

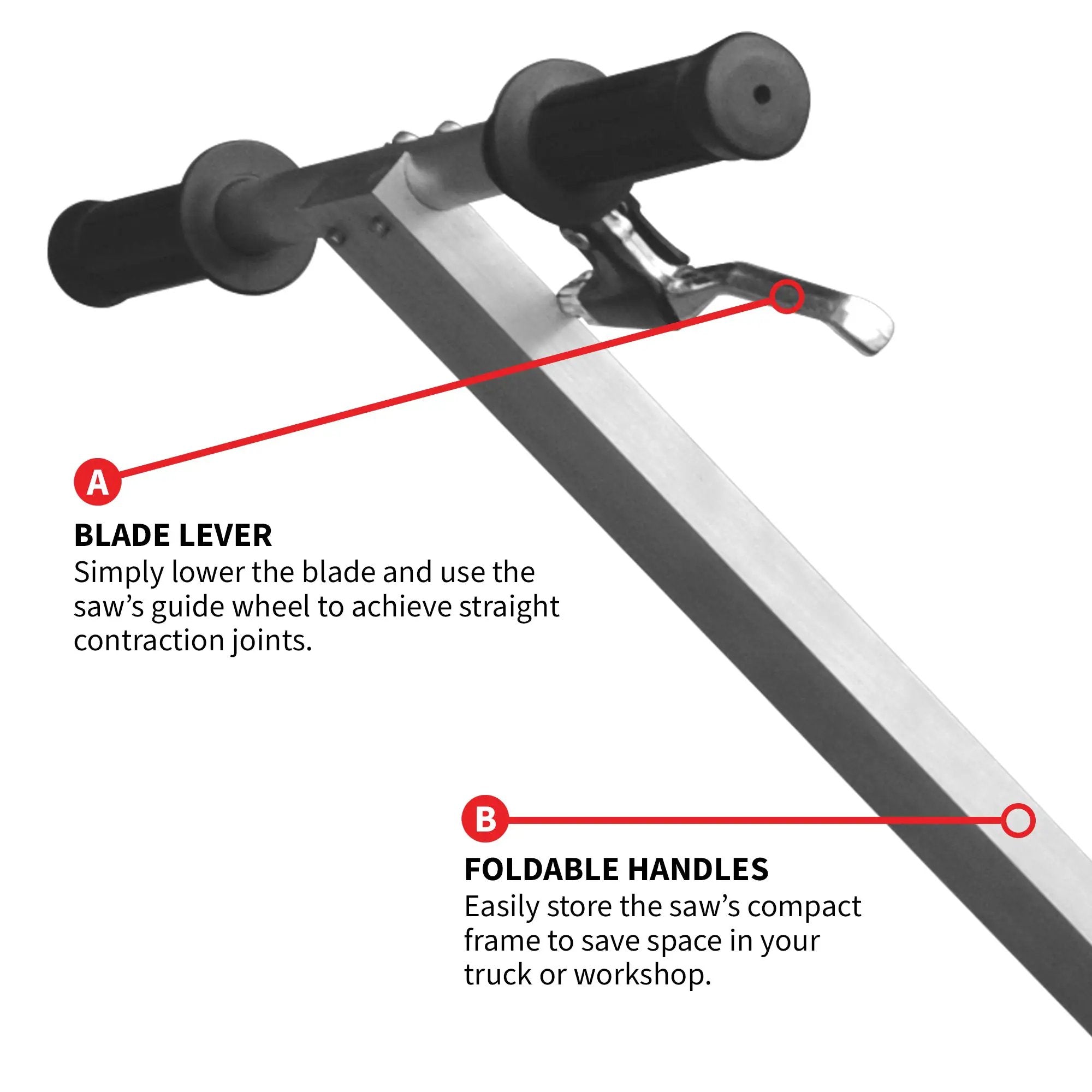

BLADE LOWERING LEVER

Use the saw's convenient operator station and lowering lever to smoothly engage the saw's 6" blade for more efficient cutting on green concrete!

Description

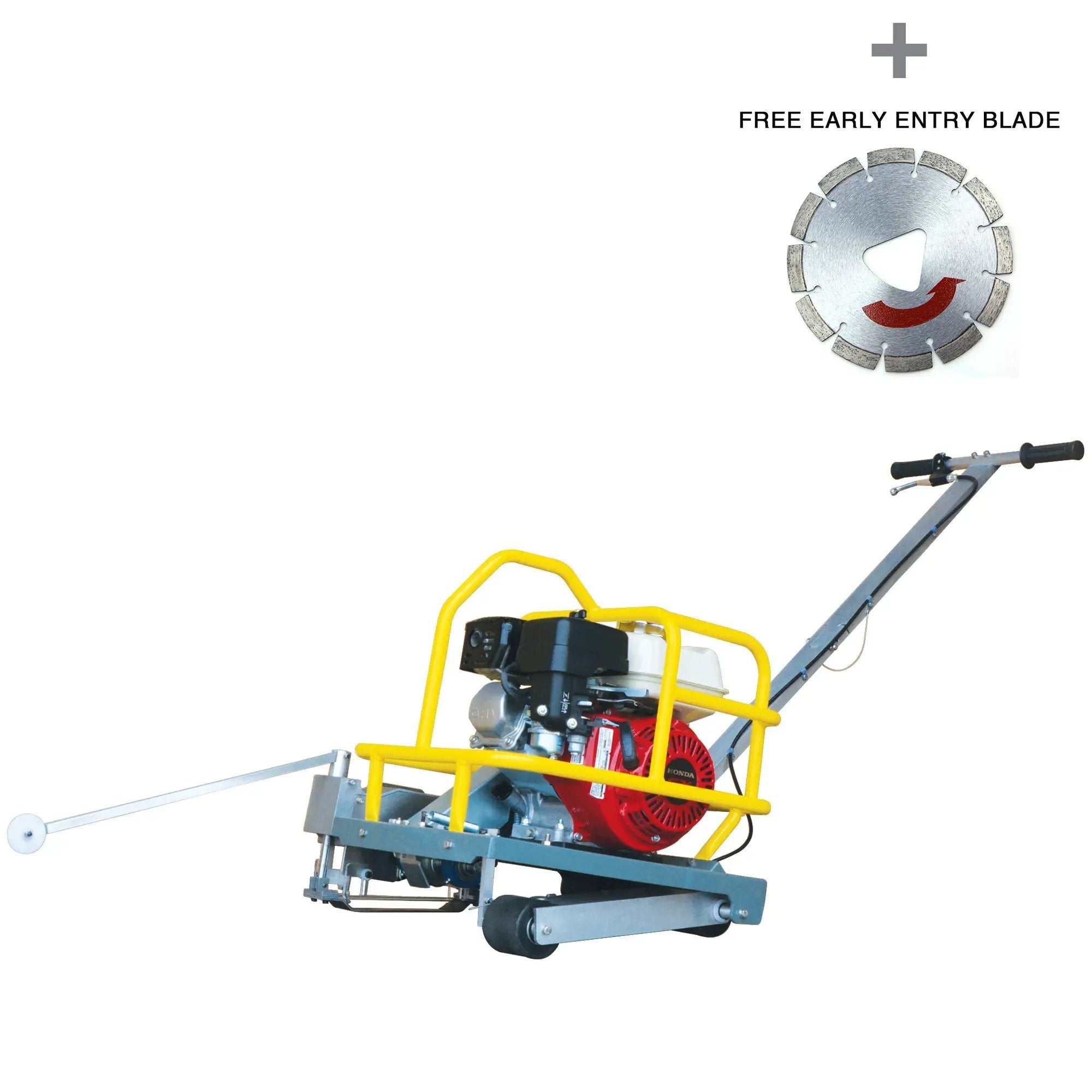

Powered by the incredible 3.5 HP Honda GX120 Engine, the TFS6H Early Entry Green Walk Behind Concrete Saw is crafted specifically for professionals and construction equipment rental. This Green Concrete Saw ensures straight cuts up to 1-3/16 in. deep, perfect for concrete slab joints to prevent stress cracks and random cracking. Extremely user friendly, its simple design allows for fast blade replacement for blade sizes up to 6 inches. The TFS6H Early Entry Concrete Saw’s polyurethane wheels are ideal for safe operation on fresh concrete - to avoid damage to the concrete finish. Durable and tough, the TFS6H Walk Behind Concrete Saw is built to last and is backed by a 3 year engine warranty, on top of a 2 year product warranty.

Features

• 3.5 HP Honda GX120 engine
• Maximum cutting depth of 1-3/16 inches
• Fits blade sizes up to 6 inches.
• Excellent for making joints in concrete slabs for random crack control

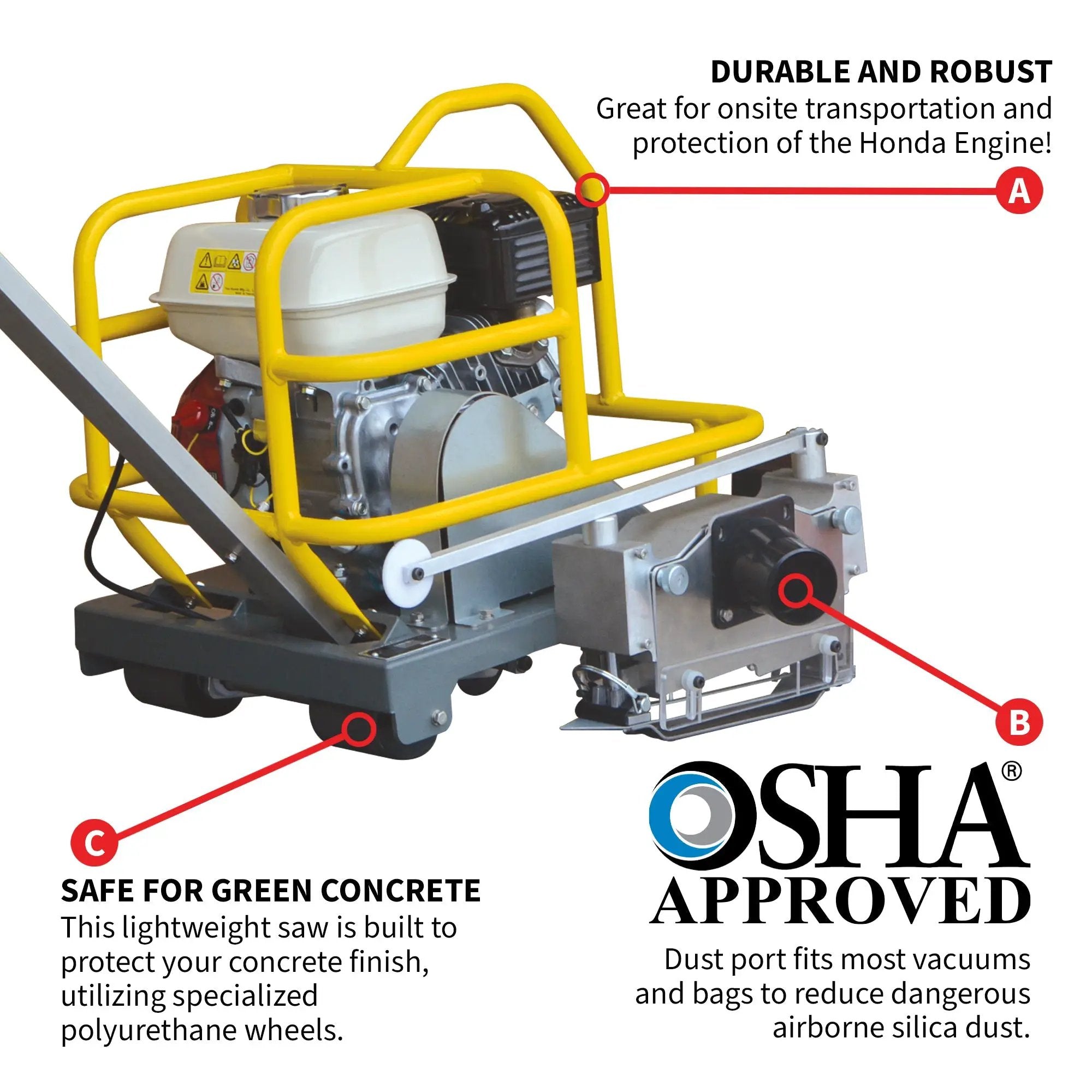

• Polyurethane wheels for safe operation on fresh concrete
• Comfortable grip handles for easy operation

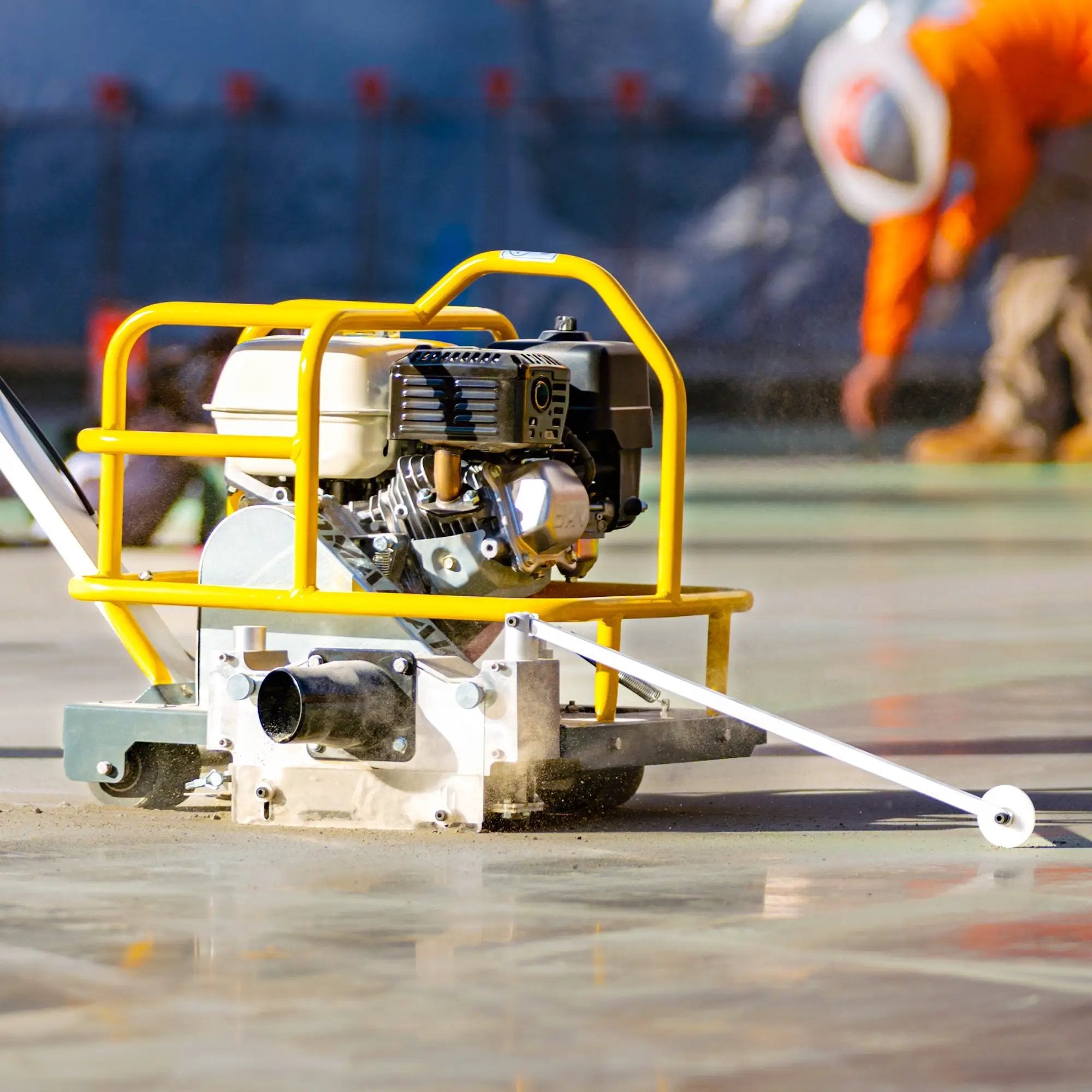

• OSHA compliant vacuum port for dust collection
• 3-year engine warranty and 2-year product warranty
• EPA and CARB compliant

Specifications

• Maximum blade diameter, in (mm): 6 (152)
• Maximum depth of cut, in (mm): 1-3/16 (30)
• Maximum power, hp: 3.5
• Average bladeshaft, rpm: 3,800
• Blade flanges, in (mm): 3 (76)
• Power source: Gasoline
• Oil Capacity: .6 quarts
• Arbor: Triangular
• Bladeshaft diameter, in (mm): 3/4 (19)
• Displacement, cu in: 163
• Bore/stroke, in (mm): 2.9 (58)/1.9 (48)
• Cylinders/cycle: 1/4
• Fuel capacity, qts (l): 3.3 (3.1)
• Oil capacity, qt (l): 0.61 (0.58)
• Air filter: Dry type dual element with pre-cleaner
• Starter: Recoil
• Engine cooling: Air
• Axle front/rear, in (mm): 3/4 (19)/3/4 (19)
• Wheels front, in (mm): 3 x 3 (76 x 76 ); 1 each
• Wheels rear, in (mm): 3 x 3 (76 x 76 ); 2 each
• Handlebar adjustment: Fixed
• Blade guard type: Enclosed
• Number of belts: 1
• Blade depth control: Manual
• Engine manufacturer: Honda
• Engine specifications: GX120
• Maximum weight uncrated, lbs: (kg) 87 (39)
• Maximum weight crated, lbs: (kg) 91 (41)
• Dimensions uncrated, in (mm): LxWxH 68 x 19 x 33-1/2 (1,727 x 483 x 851)

Package Includes

Applications

• Parking Lots

• Side Walks

• Residential and Commercial Applications
• Garages
• Patios
• Driveways
• Decorative Jobsite Enhancements

What Blade Do I Need?

DBR6 for Medium/Hard Aggregate

The DBR6 early entry saw blade strikes a balance between hardness and toughness, making it versatile for cutting through medium to hard aggregate. Its segments ensure clean and precise cuts, providing a polished finish. This blade is designed for durability, making it suitable for a wide range of aggregate hardness levels.

DBP6 for Ultra Hard Aggregate

Designed specifically for ultra-hard aggregate, the DBP6 early entry saw blade boasts extreme hardness to tackle the toughest cutting conditions. It excels in precision cutting, offering accuracy and control in challenging environments. With longevity in mind, the DBP6 is built to withstand the most demanding cutting tasks.
